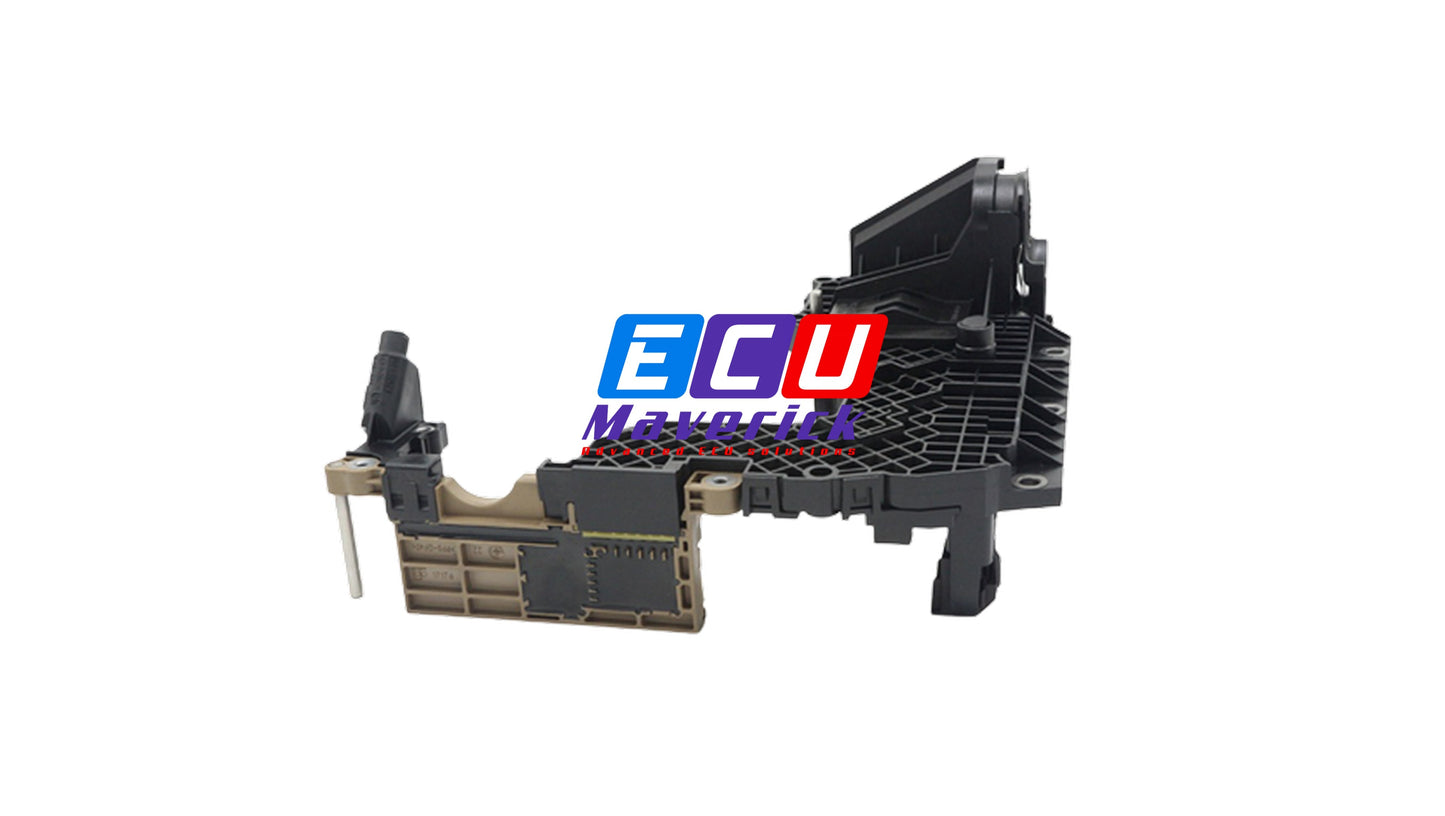

Jaguar ZF6HP28 6HP28 XK XKR XF XJ ZF 6HP Transmission TCM TCU Mechatronic Conductor Plate Remanufactured Replacement PLUG & PLAY

Jaguar ZF6HP28 6HP28 XK XKR XF XJ ZF 6HP Transmission TCM TCU Mechatronic Conductor Plate Remanufactured Replacement PLUG & PLAY

$1,250.00 USD
$1,250.00 USD
Sale Sold out
Shipping calculated at checkout.

Jaguar ZF 6HP MECHATRONIC CONDUCTOR PLATE TCM TCU EGS


PLUG & PLAY!


0260550001, 0501213094, 0260550043, 0260550008, 0260550041 C2D19586 C2D10566; C2D5996 C2P20302



TCM Failure Symptoms:

  • Transmission slips
  • Hard shifting
  • Transmission overheating
  • Engine stalls when coming to a stop
  • Engine misfire-like symptoms
  • Limp mode


Fault Codes:

  • P2722 – Pressure Control Solenoid E
  • P2723 – Pressure Control Solenoid E Perf or Stuck Off
  • P2724 – Pressure Control Solenoid E Stuck On
  • P2725 – Pressure Control Solenoid E Electrical
  • P2726 – Pressure Control Solenoid E Intermittent
  • P2727 – Pressure Control Solenoid E Ctrl Circ / Open
  • P2729 – Pressure Control Solenoid E Ctrl Circ Low
  • P2730 – Pressure Control Solenoid E Ctrl Circ High
  • P2738: Pressure Control Solenoid F Ctrl Circuit Low Voltage
  • P2738-14
  • P0964-13
  • P0964: Pressure Control Solenoid “B” Control Circuit/Open
  • P0965 – Pressure Control Solenoid “B” Control Circuit Range/Performance
  • P0966 – Pressure Control Solenoid “B” Control Circuit Low
  • P0967 – Pressure Control Solenoid “B” Control Circuit High
  • P0706: Transmission Range Sensor Circuit Range/Performance DTC Trouble Code
  • P1797 Code - Park/Neutral Position Switch Signal Malfunction
  • P1794 Code - Battery Supply Circuit Malfunction
  • P0915: Gear Shift Position Circuit Range/Performance
  • P0783: 3-4 Shift Malfunction
  • P0829: 5-6 Shift



P0706, P1797, P1794, P0915, P1517, P0783, P0829

Rotary Switch and/or D-4 switch malfunction

JAGUAR CAN TCM/ECM Circuit Malfunction

Transmission control module ignition switched power supply circuit malfunction

Park / Neutral Position Switch Cranking Neutral / Drive



Jaguar XF 3.0L V6 A/T AWD 3.0L AWD Sedan     2013, 2014
Jaguar XF 3.0L V6 A/T AWD Portfolio Sedan     2015
Jaguar XF 3.0L V6 A/T AWD Sport Sedan     2015
Jaguar XF 3.0L V6 A/T RWD 3.0L Sedan     2013, 2014
Jaguar XF 3.0L V6 A/T RWD Portfolio Sedan     2015
Jaguar XF 3.0L V6 A/T RWD Sport Sedan     2015
Jaguar XF 3.0L V6 FLEX A/T AWD 3.0L AWD Sedan     2014
Jaguar XF 3.0L V6 FLEX A/T RWD 3.0L Sedan     2014
Jaguar XF 5.0L V8 A/T RWD Supercharged Sedan     2013, 2014, 2015
Jaguar XF 5.0L V8 A/T Supercharged Sedan     2010, 2011, 2012
Jaguar XFR 5.0L V8 A/T Base Sedan     2010, 2011, 2012, 2013, 2014, 2015
Jaguar XFR-S 5.0L V8 A/T Base Sedan     2013, 2014, 2015
Jaguar XJ 5.0L V8 A/T L Supercharged Sedan     2011, 2012
Jaguar XJ 5.0L V8 A/T L Supersport Sedan     2011, 2012
Jaguar XJ 5.0L V8 A/T RWD L Supercharged Sedan     2013
Jaguar XJ 5.0L V8 A/T RWD L Supersport Sedan     2013
Jaguar XJ 5.0L V8 A/T RWD L Ultimate Sedan     2013
Jaguar XJ 5.0L V8 A/T RWD Supercharged Sedan     2013
Jaguar XJ 5.0L V8 A/T RWD Supersport Sedan     2013
Jaguar XJ 5.0L V8 A/T Supercharged Sedan     2011, 2012
Jaguar XJ 5.0L V8 A/T Supersport Sedan     2011, 2012
Jaguar XKR 5.0L V8 A/T Base Convertible     2013, 2014, 2015
Jaguar XKR 5.0L V8 A/T Base Coupe     2013, 2014, 2015
Jaguar XKR-S 5.0L V8 A/T Base Convertible     2013, 2014, 2015
Jaguar XKR-S 5.0L V8 A/T Base Coupe     2013, 2014, 2015
Jaguar XKR-S 5.0L V8 A/T GT Convertible     2014
Jaguar XKR-S 5.0L V8 A/T GT Coupe     2014
