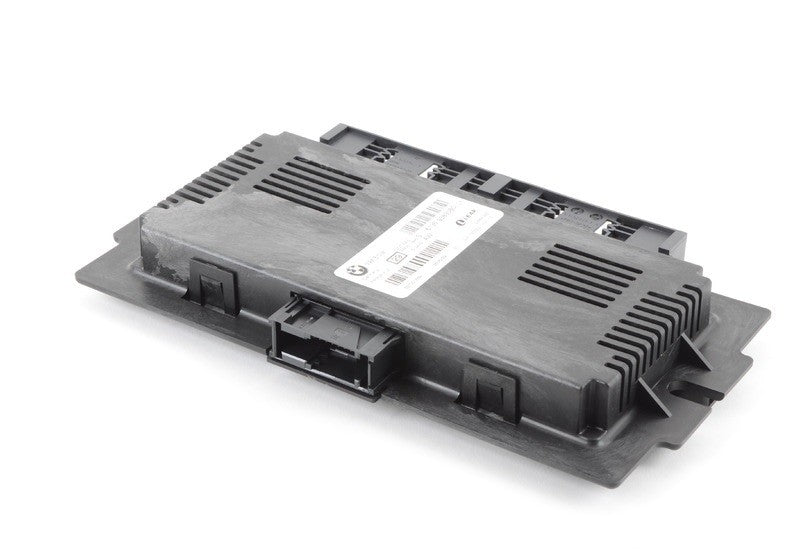

Why EEPROM Crashes Happen in BMW and MINI FRM3
Share
1. EEPROM Wear and Tear (Limited Write Cycles):
EEPROM memory has a limited number of write/erase cycles, typically around 1 million cycles per cell. Over time, as the FRM3 operates and the EEPROM gets written to (such as for storing configurations or error logs), it eventually reaches the point where certain areas of the EEPROM become corrupted due to wear-out.
- This wear can cause data corruption or crashes of the stored data. When certain critical data is corrupted, it can result in the module failing to function correctly (e.g., the FRM3 may lose its configuration or fail to operate essential functions such as lights, windows, etc.).
2. Voltage Spikes or Electrical Interference:
- The MC9S12 processor and the EEPROM can be sensitive to voltage fluctuations or electrical surges. Since the FRM3 is connected to a variety of power lines and sensors (e.g., door switches, window regulators, etc.), it’s possible for voltage spikes or electrical interference to damage the EEPROM.
- Such issues may not immediately destroy the EEPROM but can cause temporary corruption of data, especially when the system is trying to write to the memory during power-ups or while controlling electrical components.
3. Corruption Due to Incorrect Power Cycling:
- When the vehicle experiences a faulty shutdown or improper power-down sequence, such as when the vehicle is turned off while the FRM3 is still writing to the EEPROM, it can lead to data corruption. This is especially problematic if the EEPROM is being accessed during a power transition.
4. Faulty Firmware/Software Bugs:
- Software bugs within the FRM3 module’s firmware can lead to improper memory management. For example, the firmware might repeatedly attempt to write data to a specific location of the EEPROM in a loop, or it might write data in an inconsistent way, which could cause corruption in certain areas of the memory.
- Faulty code might also lead to unexpected crashes or improper handling of data structures stored in the EEPROM, leading to operational issues.
5. MC9S12 Processor and the EEPROM's Interface:
- The Motorola MC9S12 interface logic or the microcontroller's internal bus management becomes unstable (due to power issues, temperature extremes, or bugs), it can cause read/write errors to the EEPROM.
- The MC9S12 has a EEPROM memory on-chip (sometimes referred to as "internal EEPROM"), which can become problematic if there's a failure in the internal memory controller or an issue with the microcontroller's address decoding or data transfer operations.
6. Overheating:
- Overheating in the FRM3 module can cause the MC9S12 processor and the EEPROM to behave unpredictably. High temperatures can cause bit-flipping or memory errors, which may result in EEPROM data corruption.
How EEPROM Can Be Recovered (From DFlash)
- The DFlash (Data Flash) is another form of non-volatile memory that often stores the "backup" data or critical firmware of a module. In the case of the FRM3 module, it’s possible to recover corrupted EEPROM data by extracting the data from the DFlash area, which typically contains the important configuration or backup settings that can be restored to the EEPROM.
Process of Recovery:
- The DFlash contains the backup data or the backup configuration that the module can fall back on if the EEPROM becomes corrupted. In cases where the EEPROM fails or crashes, a technician can read the DFlash content and re-flash the EEPROM with this data, essentially restoring the module to a working state.
Why It Happens More with MC9S12 Processors
- The MC9S12 family of microcontrollers is widely used in automotive modules. This processor might be more susceptible to certain types of failures because:
- The processor’s internal EEPROM might be aging or defective in certain batches or over time.
- It could have inadequate handling for power management or incorrect shutdown handling in earlier firmware versions, leading to greater vulnerability to power loss during writing.
- Improper memory management in software could also be more common in earlier versions of the firmware for the MC9S12, which can lead to issues like excessive writes or improper access to the EEPROM.
Summary of Causes:
- EEPROM wear and limited write cycles
- Electrical interference, voltage spikes, and improper power-downs
- Faulty firmware or software bugs
- MC9S12 processor instability, especially in older firmware versions
- Overheating or extreme environmental conditions
- MC9S12’s internal EEPROM handling or addressing errors
How We Can Help:
If you're experiencing EEPROM crashes in your BMW FRM3 module, our expert team can help by:
- Diagnosing and repairing the root cause of EEPROM corruption
- Recovering EEPROM data from the DFlash and restoring it
- Reprogramming the MC9S12 processor and ensuring all software and firmware are up to date
