2006-2014 Mazda 3 Mazda 5 TCM Transmission Control Module TCM TCU REPAIR SERVICE REBUILDING
2006-2014 Mazda 3 Mazda 5 TCM Transmission Control Module TCM TCU REPAIR SERVICE REBUILDING
Couldn't load pickup availability
MAZDA TCM REPAIR/REBUILDING SERVICE!
No Programming required!
PLUG & PLAY GUARANTEED!
IS YOUR TCM GIVING YOU PROBLEMS?
We can fix it by replacing ALL failed and prone to failure components and ship it back to you within 1-2 business days!
How to purchase this service:
Place your order, print your order number and mail your TCM to us, we will take care of the rest.
ECU Maverick
16387 S Tamiami Trail
Ste G
Fort Myers, FL 33908
Service Type: | Repair Service |
Turnaround: | 2-3 Business Days |
Warranty: | 3 years |
Reprogramming Required? | No, Plug & Play! |
Common Failure Symptoms |
Various
|
Common Failures:
-
Check Engine light and AT lights are on
-
Vehicle stays in 3rd gear only (safe mode)
-
Hard or a heavy "kick" on "drive" and "reverse"
-
Hard shifting on gears
Common Codes:
-
Error U0073 - control Module Communication Bus "A" is off (the e-Data bus control is disabled)
-
Error U0100 - Lost Communication with ECM/PCM "a" error (data bus, engine control module (ECM) "A"-no link)
-
Error U0101 - Lost Communication with TCM (data bus, transmission control module (TCM) - no link)
-
Error P0715 - Input/Turbine Speed sensor "A" Circuit (the rotation frequency sensor of the input shaft of automatic gearbox (Hydrotransformer turbine)- Electrical circuit failure)
-
Error P0720 - Output Speed sensor Circuit error (shaft rotation frequency sensor - fault of electrical circuit)
-
Error P0744 - Torque Converter Clutch Circuit Intermittent (Electromagnetic valve coupling of a hydro transformer - unreliable pin of the electrical circuit)
-
Error P0745 - Pressure control solenoid valve manifold "A" (Gearbox Electromagnetic fluid pressure control valve - electric circuit fault)
-
Error P0748 - Pressure control solenoid valve manifold "A" Electrical Gearbox (electromagnetic pressure control valve - electrical malfunction)
-
Error P0753 - Shift solenoid valve manifold "A" Electrical (Gearbox electromagnetic valve A - electrical malfunction)
-
Error P0758 - Shift solenoid valve manifold "B" Electrical (Gearbox electromagnetic valve B in - electrical malfunction)
-
Error P0763 - Shift solenoid valve manifold "C" Electrical (Gearbox electromagnetic valve C in - electrical malfunction)
-
Error P0768 - Shift solenoid valve manifold "D" Electrical (Gearbox electromagnetic valve D - electrical malfunction)
-
Error P0773 - Shift solenoid valve manifold "E" Electrical (Gearbox electromagnetic valve E in - electrical malfunction)
-
Error P0778 - Pressure control solenoid valve manifold "B" electrical (electromagnetic valve B in pressure control - electrical malfunction)
-
Error P0791 - Intermediate Shaft speed sensor "A" Circuit (intermediate shaft frequency sensor - failure of the electrical circuit)
-
Error P0841 - Transmission Fluid Pressure sensor/Switch "A" error - Circuit Range/performance (sensor A of the pressure of the work fluid of gearbox - band/function)
-
Error P0882 - TCM Power Input Signal Low (Gearbox electronic control module - low power supply voltage)
-
Error P0883 - TCM Power Input Signal Low (Gearbox electronic control module - high power supply voltage)
-
Error P0884 - TCM Power Input Signal Intermittent (Gearbox electronic control module (TCM), input power signal - unreliable pin of the electrical circuit)
-
Error P2709 - Shift solenoid valve manifold "F" Electrical (electromagnetic valve F gear switches - electrical malfunction)
Common Part Numbers:
2.0L, 2006-2011: L32E189E1, L32E189E1A, L32E189E1B, L32E189E1C, L32E189E1D, L34N189E1, L34N189E1A, L34N189E1B, L34N189E1C, L34N189E1D,
2.5L, 2006-2014: L552189E1, L552189E1A, L552189E1B, L552189E1C ,L552189E1D, L552189E1E, L552189E1F, L552189E1G, L552189E1H, L552189E1J
2.5L, 2006-2014: L5G6189E1, L5G6189E1A, L5G6189E1B, L5G6189E1C, L5G6189E1D, L5G6189E1E, L5G6189E1F, L5G6189E1G, L5TE189E1, L5TE189E1A, L5TE189E1B, L5TE189E1C, L5TE189E1D, L5TE189E1E, L5TE189E1F, L5TE189E1G, L5TE189E1H, L5TE189E1J, L5G6189E1H, L5G6189E1J
2.3L, 2010-2014: L34T189E1, L34T189E1A, L34T189E1B, L34T189E1C, L34T189E1D, L34T189E1E, L34T189E1F
2.5L, 2010-2014: L539189E1, L539189E1A, L539189E1B, L539189E1C, L539189E1D, L539189E1E, L539189E1F, L539189E1G, L539189E1H, L539189E1J
2.5L, 2011-2014: L5F8189E1, L5F8189E1A, L5F8189E1B, L5F8189E1C
2.0L, 2012-2013: LFJE189E1, LFJE189E1A, LFJE189E1B, LFJE189E1C, LFJE189E1D, LFJE189E1E, LFJE189E1F, LFJE189E1G, LFJE189E1H
2.0, 2.3L, 2.5, 2010-2014: LF8M189E1, LF8M189E1A, LF8M189E1B, LF8M189E1C, LF8M189E1D, LF8M189E1E, LF8M189E1F, LF8M189E1G, LF8M189E1H
L539189E1C; L539189E1E; L539189E1D; L539189E1A; L539189E1F; L539-18-9E1F; L539-18-9E1H; L539189E1J; L539-18-9E1J
L34T-18-9E1C L34T189E1
L34T189E1A
L34T189E1B
L34T189E1C
L34T189E1D
L34T189E1E
L34T189E1F
LFJE 18-9E1D
L5E4189E1C; L5E4189E1D; L5E4-18-9E1D; L5E4-18-9E1E; L5E4189E1B; L5E4189E1E; L5E4189E1; L5E4189E1A; ; L5E4-18-9E1B; L5E4-18-9E1C; L5E4-18-9E1A
L5F8-18-9E1A; L5F8-18-9E1B; L5F8-18-9E1C; L5F8-18-9E1D; L5F8189E1; L5F8189E1A; L5F8189E1B; L5F8189E1C
L32E-18-9E1; L32E-18-9E1B; L32E-18-9E1C; L32E-18-9E1D; L32E189E1; L32E189E1B; L32E189E1C
![2006-2014 Mazda 3 Mazda 5 TCM Transmission Control Module TCM TCU REPAIR SERVICE REBUILDING](http://ecumaverick.com/cdn/shop/products/MazdaTCMRepair.jpg?v=1678543937&width=1445)
![L34T-18-9E1C L34T189E1 L34T189E1A L34T189E1B L34T189E1C L34T189E1D L34T189E1E L34T189E1F](http://ecumaverick.com/cdn/shop/products/mazda6_72f04cad-c498-4a3d-9cbb-afe6db0d52c7.jpg?v=1678543937&width=1445)

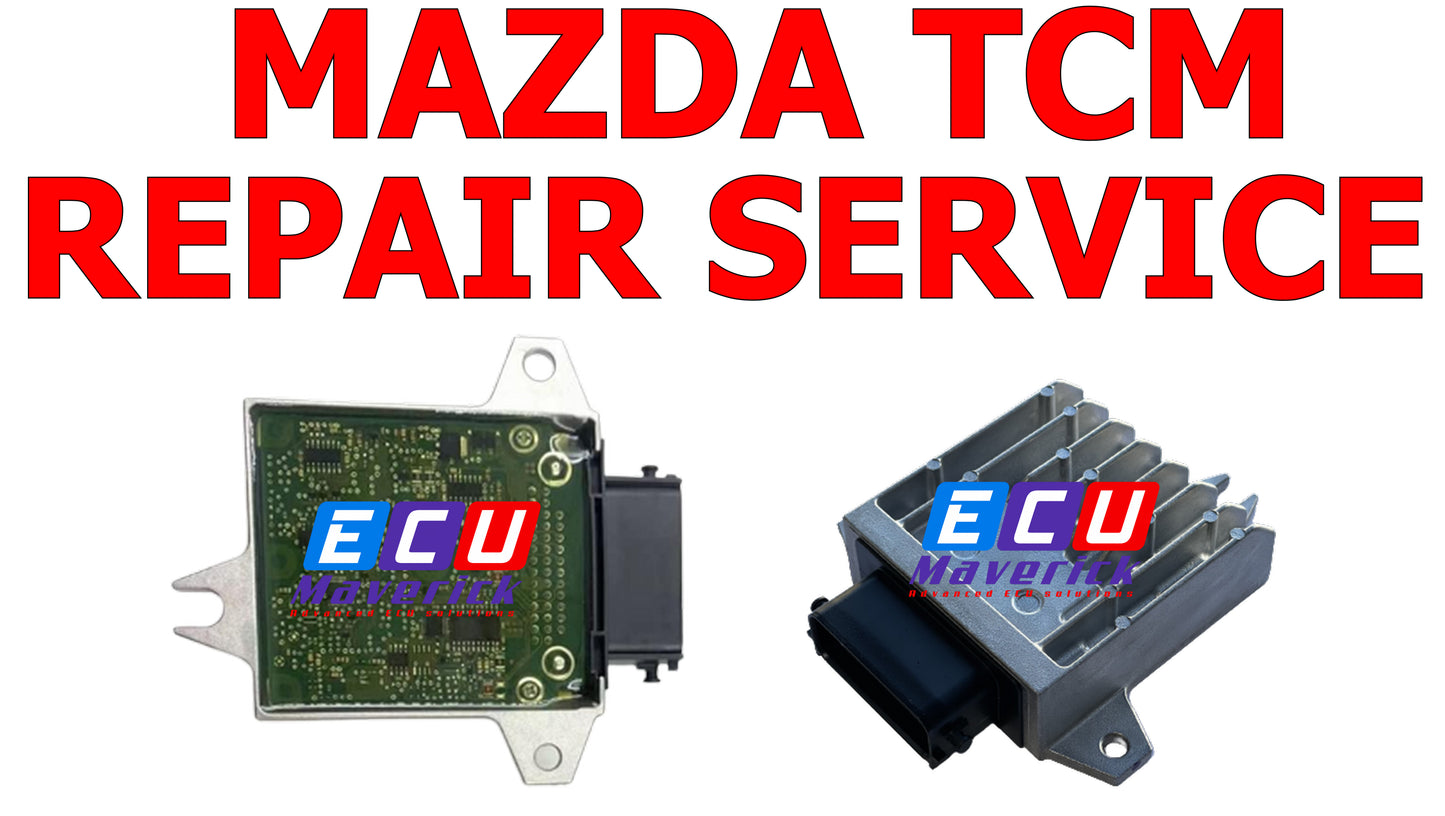

![L5E4189E1C; L5E4189E1D; L5E4-18-9E1D; L5E4-18-9E1E; L5E4189E1B; L5E4189E1E; L5E4189E1; L5E4189E1A; ; L5E4-18-9E1B; L5E4-18-9E1C; L5E4-18-9E1A](http://ecumaverick.com/cdn/shop/products/MazdaTCMrepair2.jpg?v=1678545079&width=1445)
